Homework3 - Yashaswini

Author

Yashaswini Makaram

Data Flow Analysis

About the Code:

  • creates a flow diagram for a given bril code. can choose whether to ggo forwards,ay must, ect.

’’’ import json from collections import defaultdict import graphviz

def load_bril_program(filename): “““Load the Bril program from a JSON file.”“” with open(filename, ‘r’) as file: return json.load(file)

def build_cfg(function): “““Build the Control Flow Graph (CFG) for a given function.”“” instrs = function[‘instrs’] cfg = defaultdict(list) label_map = {}

# Map labels to instruction indices
for i, instr in enumerate(instrs):
    if 'label' in instr:
        label_map[instr['label']] = i

for i, instr in enumerate(instrs):
    if 'op' in instr and instr['op'] == 'jmp':
        target = label_map[instr['labels'][0]]
        cfg[i].append(target)
    elif 'op' in instr and instr['op'] == 'br':
        target1 = label_map[instr['labels'][0]]
        target2 = label_map[instr['labels'][1]]
        cfg[i].extend([target1, target2])
    else:
        # Fall-through case: connect to the next instruction
        if i + 1 < len(instrs):
            cfg[i].append(i + 1)

return cfg

def predecessors(cfg): “““Find predecessors for each node in the CFG.”“” pred = defaultdict(list) for node, successors in cfg.items(): for succ in successors: pred[succ].append(node) return pred

def generic_data_flow_analysis(function, transfer_fn, gen_fn, kill_fn, direction=“forward”, merge=“union”): “““Perform a generic data flow analysis on the given function.”“” cfg = build_cfg(function) preds = predecessors(cfg)

# Initialize IN and OUT sets for all nodes
in_sets = defaultdict(set)
out_sets = defaultdict(set)  # Initialize with defaultdict to avoid KeyError

# Ensure every node in the function has an entry in out_sets
for node in range(len(function['instrs'])):
    out_sets[node] = gen_fn(node)  # Start with GEN[n] if desired, or an empty set

changed = set(cfg.keys())

while changed:
    n = changed.pop()

    # Calculate IN[n] or OUT[n] based on direction
    if direction == "forward":
        in_sets[n] = set()
        for p in preds[n]:
            if merge == "union":
                in_sets[n] |= out_sets[p]
            elif merge == "intersection" and out_sets[p]:
                in_sets[n] &= out_sets[p]
    else:  # Backward analysis
        out_sets[n] = set()
        for s in cfg[n]:
            if merge == "union":
                out_sets[n] |= in_sets[s]
            elif merge == "intersection" and in_sets[s]:
                out_sets[n] &= in_sets[s]

    old_out = out_sets[n].copy() if direction == "forward" else in_sets[n].copy()

    # Update OUT[n] or IN[n] using the transfer function
    if direction == "forward":
        out_sets[n] = transfer_fn(in_sets[n], gen_fn(n), kill_fn(n))
    else:
        in_sets[n] = transfer_fn(out_sets[n], gen_fn(n), kill_fn(n))

    # If there's a change, update the changed set
    if direction == "forward" and old_out != out_sets[n]:
        for s in cfg[n]:
            changed.add(s)
    elif direction == "backward" and old_out != in_sets[n]:
        for p in preds[n]:
            changed.add(p)

return in_sets, out_sets

def reaching_definitions_transfer(in_set, gen_set, kill_set): “““Transfer function for Reaching Definitions: OUT[n] = GEN[n] U (IN[n] - KILL[n]).”“” return gen_set | (in_set - kill_set)

def reaching_definitions_gen_kill(instr, idx): “““GEN and KILL sets for Reaching Definitions.”“” if ‘dest’ in instr: gen_set = {(instr[‘dest’], idx)} kill_set = {var for var, _ in gen_set} return gen_set, kill_set return set(), set()

def create_cfg_visualization(function, in_sets, out_sets): “““Create a graphical view of the CFG with IN and OUT sets.”“” cfg = build_cfg(function) dot = graphviz.Digraph(comment=function[‘name’])

for node, instr in enumerate(function['instrs']):
    label = f"Instr {node}: {instr}\nIN: {in_sets[node]}\nOUT: {out_sets[node]}"
    dot.node(str(node), label)

for node, successors in cfg.items():
    for succ in successors:
        dot.edge(str(node), str(succ))

# Save the CFG visualization as a PDF
dot.render(f"cfg_{function['name']}", format="pdf", cleanup=True)

def run_analysis(program): “““Run the generic data flow analysis on each function in the Bril program.”“” for function in program[‘functions’]: print(f”Analyzing function: {function[‘name’]}“)

    def gen_fn(n):
        instr = function['instrs'][n]
        return reaching_definitions_gen_kill(instr, n)[0]

    def kill_fn(n):
        instr = function['instrs'][n]
        return reaching_definitions_gen_kill(instr, n)[1]

    in_sets, out_sets = generic_data_flow_analysis(
        function, reaching_definitions_transfer, gen_fn, kill_fn, direction="forward", merge="union"
    )

    print(f"IN sets: {in_sets}")
    print(f"OUT sets: {out_sets}")

    # Create a graphical view of the CFG
    create_cfg_visualization(function, in_sets, out_sets)

def main(): # Load the Bril program from a file bril_program = load_bril_program(‘add.bril’)

# Run the analysis
run_analysis(bril_program)

Run the main function

if name == “main”: main() ’’’ ## Testing:

test case: ’’’ { “functions”: [ { “instrs”: [ { “dest”: “v0”, “op”: “const”, “type”: “int”, “value”: 1 }, { “dest”: “v1”, “op”: “const”, “type”: “int”, “value”: 2}, { “args”: [“v0”, “v1”],“dest”: “v2”, “op”: “add”, “type”: “int”}, { “args”: [“v2”], “op”: “print”} ], “name”: “main” } ] } ’’’

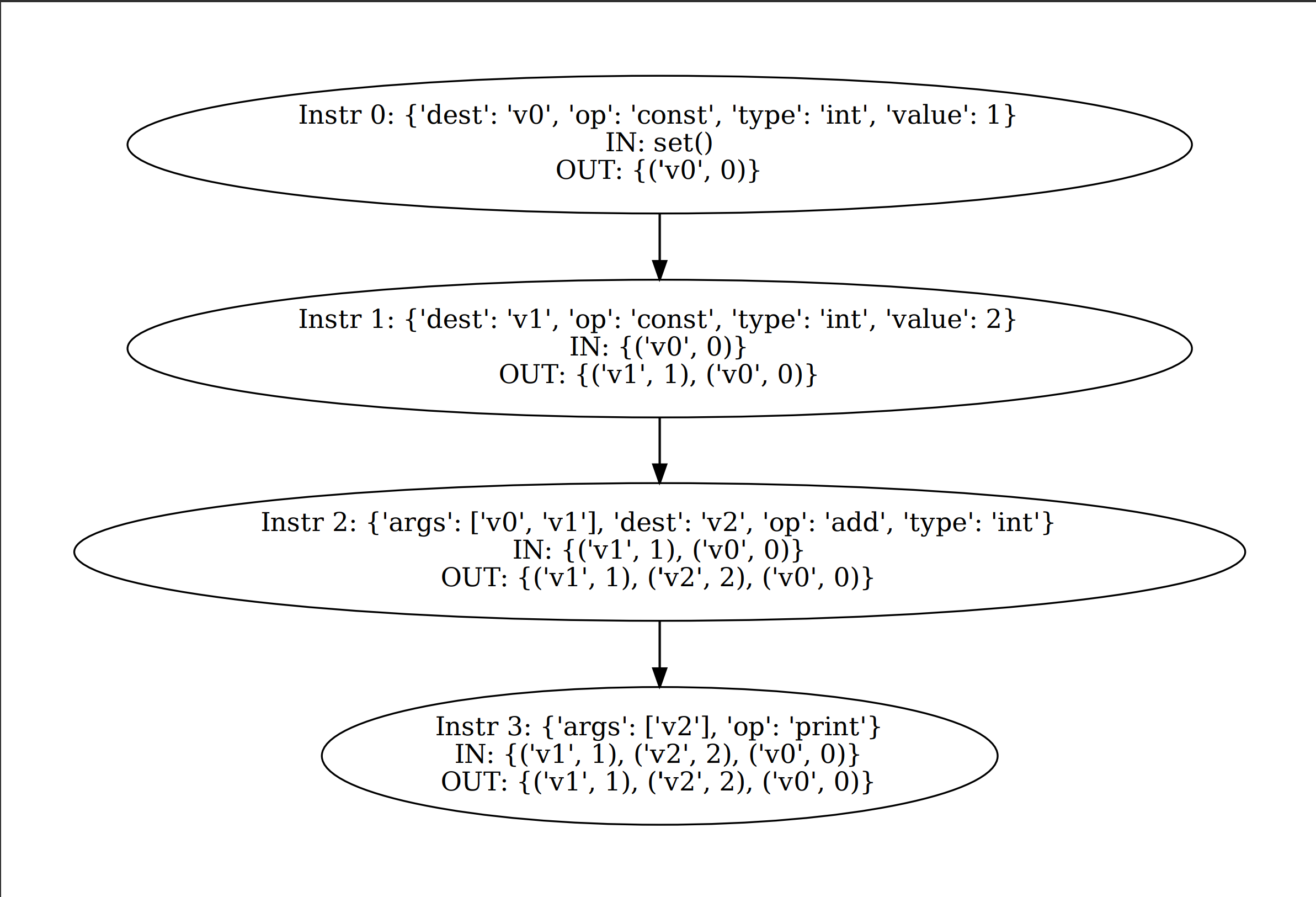

output:

test case 2 ’’’ { “functions”: [ { “instrs”: [ {“dest”: “c5”,“op”: “const”,“type”: “int”,“value”: 5}, {“args”: [“c5”],“dest”: “v0”,“op”: “alloc”,“type”: {“ptr”: “int”}}, {“dest”: “j”,“op”: “const”,“type”: “int”,“value”: 1}, {“dest”: “c1”,“op”: “const”,“type”: “int”,“value”: 1}, {“args”: [“v0”,“c1”],“op”: “store”}, {“dest”: “c2”,“op”: “const”,“type”: “int”,“value”: 2}, {“args”: [“v0”,“c2”],“op”: “store”}, {“dest”: “c3”,“op”: “const”,“type”: “int”,“value”: 3}, {“args”: [“v0”,“c2”],“op”: “store”}, {“dest”: “c4”,“op”: “const”,“type”: “int”,“value”: 4}, {“args”: [“v0”,“c2”],“op”: “store”}, {“dest”: “c5”,“op”: “const”,“type”: “int”,“value”: 5}, {“args”: [“v0”,“c2”],“op”: “store”}, {“dest”: “sum”,“op”: “const”,“type”: “int”,“value”: 0}, {“dest”: “i”,“op”: “const”,“type”: “int”,“value”: 0}, {“label”: “loop” }, {“args”: [“i”,“c5”],“dest”: “cond”,“op”: “lt”,“type”: “bool”}, {“args”: [“cond”],“labels”: [“body”,“end”],“op”: “br”}, {“label”: “body”}, {“args”: [“v0”],“dest”: “current”,“op”: “load”,“type”: “int”}, {“args”: [“sum”,“current”],“dest”: “sum”,“op”: “add”,“type”: “int”}, {“args”: [“i”,“j”],“dest”: “i”,“op”: “add”,“type”: “int”}, {“labels”: [ “loop”],“op”: “jmp”}, {“label”: “end” }, {“args”: [“sum”],“op”: “print”}, {“args”: [“v0”],“op”: “free”}, {“op”: “ret”} ], “name”: “main” } ] } ’’’

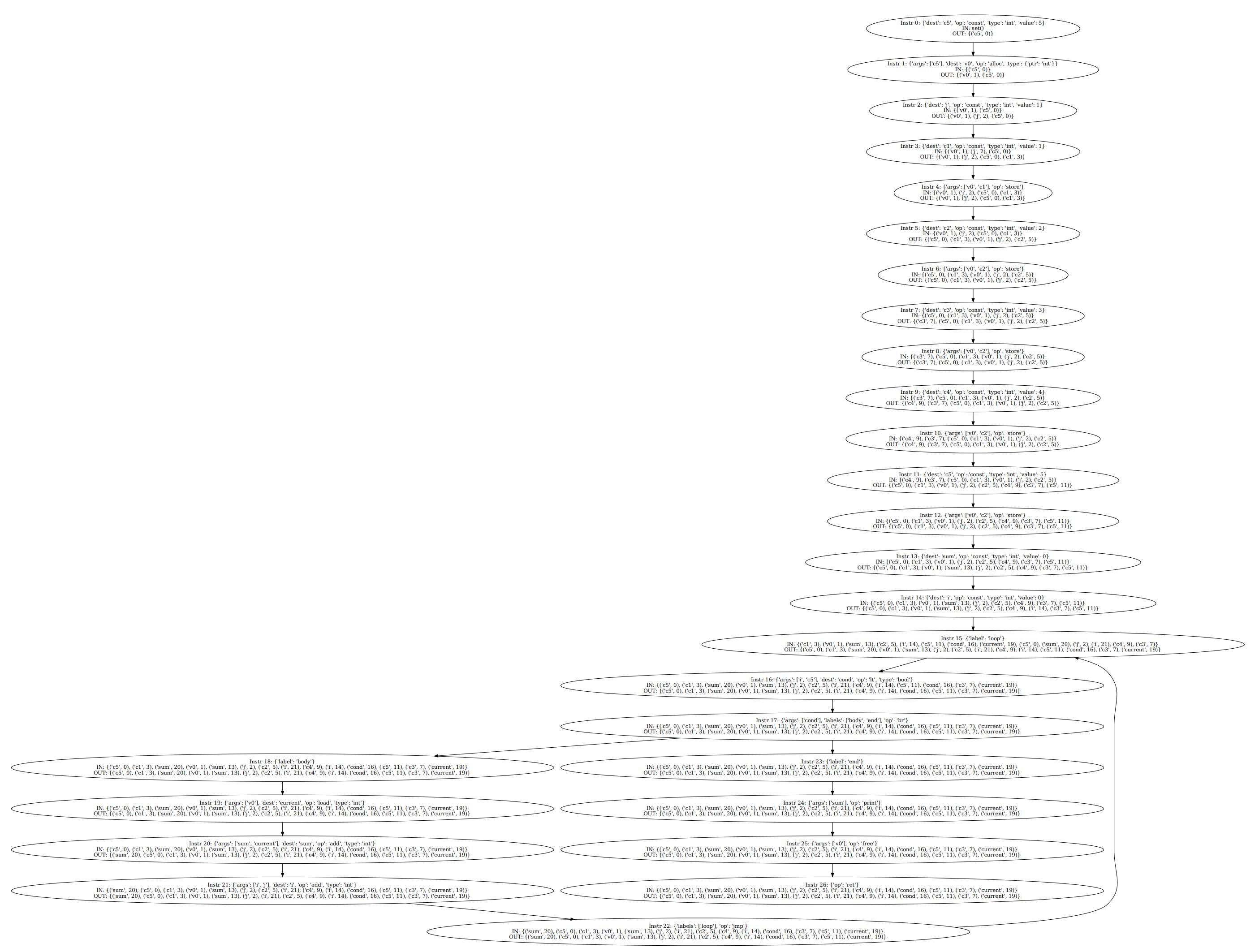

output
